Project GVB Amsterdam

Customer GVB Amsterdam   City Amsterdam / Netherland Supplier Kärcher Planning Commissioning Hand over 4/2003 5/2003 5/2003

Projectdescription:

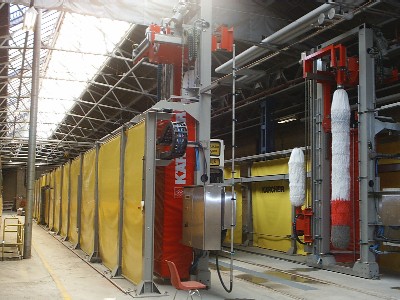

This plant is used to wash trams from GVB Amsterdam.

The wash plant washes the tram during drive-throw or with positioned tram. It is alcaline detergent used.

The washtime is appr. between 10 and 30 min depending from program and tramtype

The project GVB Amsterdam contains

	Development from controlling software for tram washplant
	PC based data recorder
	Commissioning

Controlling:

To control the plant a Simatic S7 400 is used with a CPU 414-3 DP . The Sensor/Actors are controlled viaInterbus - S

A remote touch panel is used to communicate via fiber-optic and PROFIBUS-DP protocol to the CPU.

The cpu administrate up to 40 different Tram types.

Each tramtype includes its own dataset for

- Frontwashareas

- Sidewashareas

- Rearwashareas

Also the machine sequence are given by parameter declarations.
